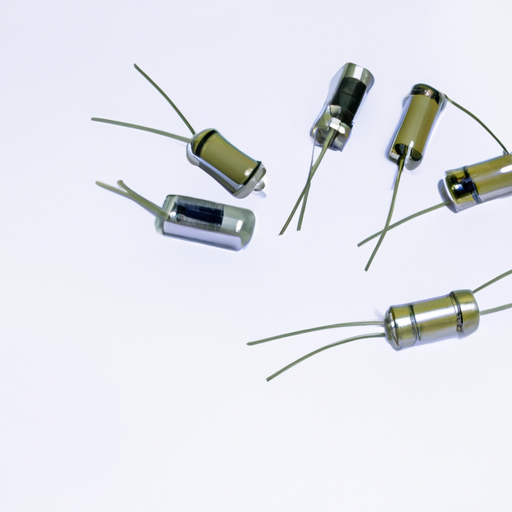

A capacitor is a passive electronic component that stores electrical energy in an electric field. It consists of two conductive plates separated by an insulating material known as a dielectric. When a voltage is applied across the plates, an electric field is created, allowing the capacitor to store energy. Capacitors are fundamental components in various electrical and electronic circuits, playing a crucial role in energy storage, filtering, and signal processing.
Capacitors are essential in modern technology, found in everything from simple electronic devices to complex power systems. They help stabilize voltage and power flow, filter out noise, and store energy for later use. Their versatility and reliability make them indispensable in applications ranging from consumer electronics to industrial machinery.
This article will explore the basic principles of capacitors, their key product characteristics, applications, and how to select the right capacitor for specific needs. Understanding these aspects will help engineers, designers, and hobbyists make informed decisions when working with capacitors.
Capacitors store electrical energy by accumulating charge on their plates. When a voltage is applied, electrons move from one plate to the other, creating a difference in charge. The amount of charge a capacitor can store is directly proportional to the voltage applied and the capacitance value of the capacitor.
The capacitance (C) of a capacitor is defined as the ratio of the electric charge (Q) stored on one plate to the voltage (V) across the plates:
\[ C = \frac{Q}{V} \]
This relationship indicates that a higher capacitance allows for more charge storage at a given voltage.
Capacitors come in various types, each with unique characteristics suited for different applications:
These capacitors are polarized and typically used for high-capacitance applications. They have a larger capacitance value but are sensitive to voltage and polarity.
Ceramic capacitors are non-polarized and widely used for their stability and reliability. They are available in various capacitance values and voltage ratings.
Film capacitors use a thin plastic film as the dielectric. They are known for their low ESR and high stability, making them suitable for audio and high-frequency applications.
Tantalum capacitors are also polarized and offer high capacitance in a small package. They are commonly used in compact electronic devices.
Supercapacitors, or ultracapacitors, have extremely high capacitance values and are used for energy storage applications, such as in renewable energy systems and electric vehicles.
Capacitance is measured in farads (F), with common subunits including microfarads (µF) and nanofarads (nF). The choice of unit depends on the application and the capacitance value required.
Tolerance indicates how much the actual capacitance can vary from the stated value. Common tolerance levels range from ±5% to ±20%, affecting the capacitor's performance in precision applications.
The voltage rating of a capacitor indicates the maximum voltage it can handle without breaking down. Exceeding this rating can lead to failure, which may damage the circuit.
To ensure reliability, it is common practice to derate capacitors, using them at a voltage lower than their maximum rating. This provides a safety margin and extends the lifespan of the component.
ESR is the internal resistance of a capacitor that affects its performance, particularly in high-frequency applications. A lower ESR indicates better performance and efficiency.
High ESR can lead to power loss and heat generation, reducing the capacitor's effectiveness in filtering and energy storage applications.
The temperature coefficient indicates how a capacitor's capacitance changes with temperature. Common types include X7R, C0G, and Y5V, each with different temperature stability characteristics.
Capacitors with a high temperature coefficient may experience significant capacitance variation with temperature changes, impacting circuit performance in temperature-sensitive applications.
Leakage current is the small amount of current that flows through a capacitor even when it is not connected to a circuit. It is typically measured in microamperes (µA).
High leakage current can lead to energy loss and affect the performance of timing circuits and energy storage applications, making it a critical characteristic to consider.
Capacitors come in various sizes, which can impact their suitability for specific applications. Smaller capacitors are often preferred in compact electronic devices.
Capacitors can be mounted using through-hole or surface mount technology (SMT). SMT capacitors are generally smaller and more suitable for automated assembly processes.
The lifespan of a capacitor can be influenced by factors such as temperature, voltage, and operating conditions. High temperatures and voltages can significantly reduce a capacitor's lifespan.
Manufacturers often provide reliability ratings, such as Mean Time To Failure (MTTF) and Mean Time Between Failures (MTBF), to help users assess the expected lifespan and reliability of capacitors.
Capacitors are commonly used in power supply circuits to smooth out voltage fluctuations and filter out noise, ensuring stable power delivery to electronic components.
In signal processing applications, capacitors are used to couple and decouple signals, allowing AC signals to pass while blocking DC components, which is essential for maintaining signal integrity.
Capacitors play a crucial role in timing circuits, where they work in conjunction with resistors to create time delays, enabling applications such as oscillators and timers.
Supercapacitors and traditional capacitors are increasingly used in renewable energy systems to store energy generated from sources like solar and wind, providing a buffer for energy supply.
In electric motors, capacitors are used to provide the initial boost of energy needed to start the motor and to maintain efficient operation during running.
When selecting a capacitor, it is essential to consider the specific requirements of the application, including capacitance value, voltage rating, and ESR.
Environmental factors such as temperature, humidity, and exposure to chemicals can affect capacitor performance. Choosing capacitors rated for the specific environment is crucial for reliability.
There is often a trade-off between cost and performance. While high-performance capacitors may be more expensive, they can provide better reliability and efficiency in critical applications.
It is important to review manufacturer specifications and quality assurance processes to ensure that the selected capacitors meet the required standards for performance and reliability.
Understanding the key characteristics of capacitors, including capacitance value, voltage rating, ESR, and leakage current, is essential for selecting the right component for any application.
Capacitors are integral to modern technology, enabling the functionality of countless devices and systems. Their versatility and reliability make them a cornerstone of electrical and electronic engineering.
As technology continues to evolve, advancements in capacitor technology, such as the development of new materials and designs, will likely lead to improved performance and new applications, particularly in energy storage and renewable energy systems.
1. "Capacitors: Principles and Applications" by John Smith
2. "The Art of Electronics" by Paul Horowitz and Winfield Hill
1. IEC 60384 - Standards for Fixed Capacitors
2. EIA-198 - Guidelines for Capacitor Specifications
This comprehensive overview of capacitors and their product characteristics provides a solid foundation for understanding their role in electrical and electronic circuits. Whether you are an engineer, designer, or hobbyist, grasping these concepts will enhance your ability to work effectively with capacitors in various applications.
